Oil & Gas
AEN offers design and detail engineering services for the oil and gas, refinery, petrochemical, chemical, offshore, power plant, utility, and pharmaceutical industries.
- Piping material specifications.
- 3D model project set-up.
- Painting and insulation specification.
- Site survey / tie-in sketches.
- Piping studies.
- Updating plot plans and unit plot plans.
- Updating key plans.
- Equipment modeling.
- Nozzle orientation drawings.
- Modelling of lines
- Interface with other disciplines

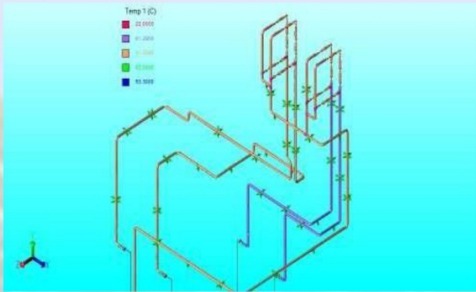

- Stress analysis.

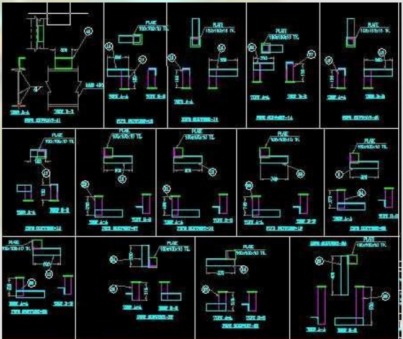

- Pipe supports.
- Clash checking.

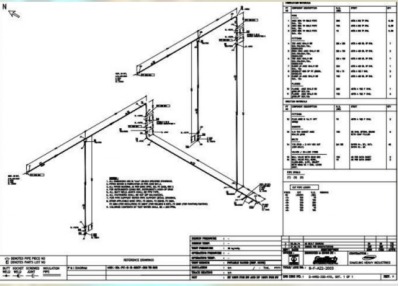

- Isometrics.

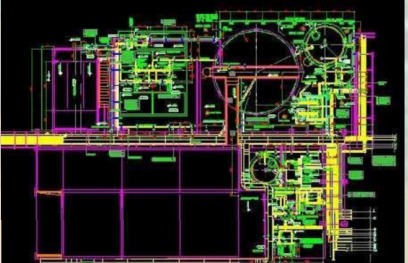

- Piping general arrangement drawings.
- Piping material take-offs.
- Support material take-off
- Insulation and painting take-off.
- Software-PDMS, CAD Worx, CAESER II, AutoCAD.
